• Warranty 25 years old
  • Degree of Protection IP68
  • Material Aluminum alloy and tempered glass
  • Color Silver

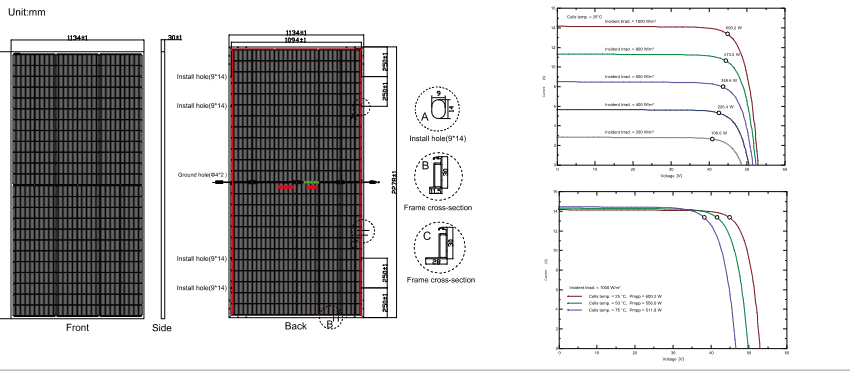

  • Dimension 1722x1134x30mm
  • Operating temperature-40 ~ +85°C
  • Thickness 30mm
  • Photovoltaic module power 410W
  • Packaging Panel
  • Nominal power 410W
  • Maximum power point voltage 31.46V
  • Current at maximum power  .04A
  • Open circuit voltage 37.45V
  • Short-circuit curren t13.85A
  • Module efficiency 20.97%
  • Maximum System Voltage 1500V
  • Fuse maximum current 25AA
  • Power tolerance 0-+3%
  • Coeff. temp. power -0.350%/°C
  • Coeff. temp. voltage -0.285%/°C
  • Coeff. temp. current +0.045%/°C
  • Nominal operating temperature 45±2°C
  • Maximum panel load Wind/Snow: 2400Pa/5400Pa
  • Panel frame Anodized aluminum
  • Number of cells 108 (12×9)
  • Junction box IP67/IP68 with 3 diodes
  • Glass type 3.2mm hardened high transmission
  • Producibility Guarantee 85% in 25 years
  • Cell type 182x91mm monocrystalline
  • Output cables 100cm 4mm² MC4 connector
  • Version Silver Slim
